Product Details
＋

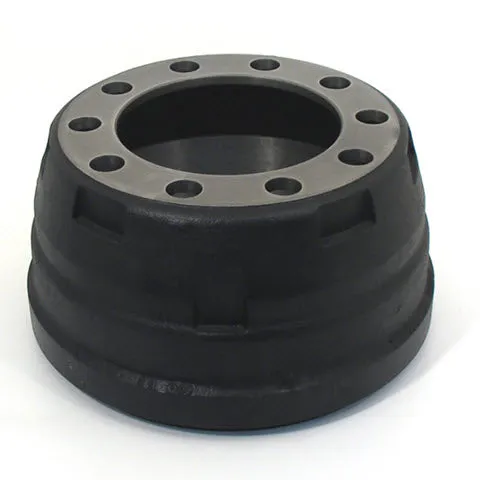

Heavy Duty Brake Drum (10 hole, for 15" x 4" brakes)
Part Number: HDD 54293-018
- KICast Cast Iron Brake Drums are OEM First Fit Quality
- Optimized Metallurgy for maximum heat dissipation, durability, and stopping ability.
- Special information: Balanced
Specifications:
| Bolt Circle Diameter | : 11.25 in |
| Bolt Hole Quantity | : 10 |
| Bolt Hole Size | : 1.28 in |
| Brake Size | : 15.00 x 4.00 in |
| Brake Surface Diameter | : 15 in |
| Brake Surface Width | : 4.58 in |
| Drum Mount | : Outboard |
| Drum Type | : CX |
| Dust Shield Recess Diameter | : 16 in |
| Inside Finished Diameter | : 13.27 in |
| Maximum Wear Diameter | : 15.12 in |
| Mounting Flange Diameter | : 14.17 in |
| Mounting Flange Thickness | : 0.51 in |
| Outside Sidewall Diameter | : 15.75 in |
| Overall Depth | : 9.04 in |
| Overall Diameter | : 17.13 in |
| Pilot Diameter | : 8.78 in |
| Sidewall Offset | : in |
| Squealer Band Width | : 1.54 in |
| Weight | : 79 lb |
| Wheel Type | : Disc |
Interchanges:
Automann: ATM 151.5403BA, 1515403BA
Conmet: 10001781, 10009920, 107164
Gunite - 3574X, 3800X
IHC: 2500535C1
IHC: 2500535C1
Mack - 33983800X
Meritor: 85123448002
Volvo: 69547B, 3949229
Meritor: 85123448002
Volvo: 69547B, 3949229
Webb - 55548B, 65548, 65548B
